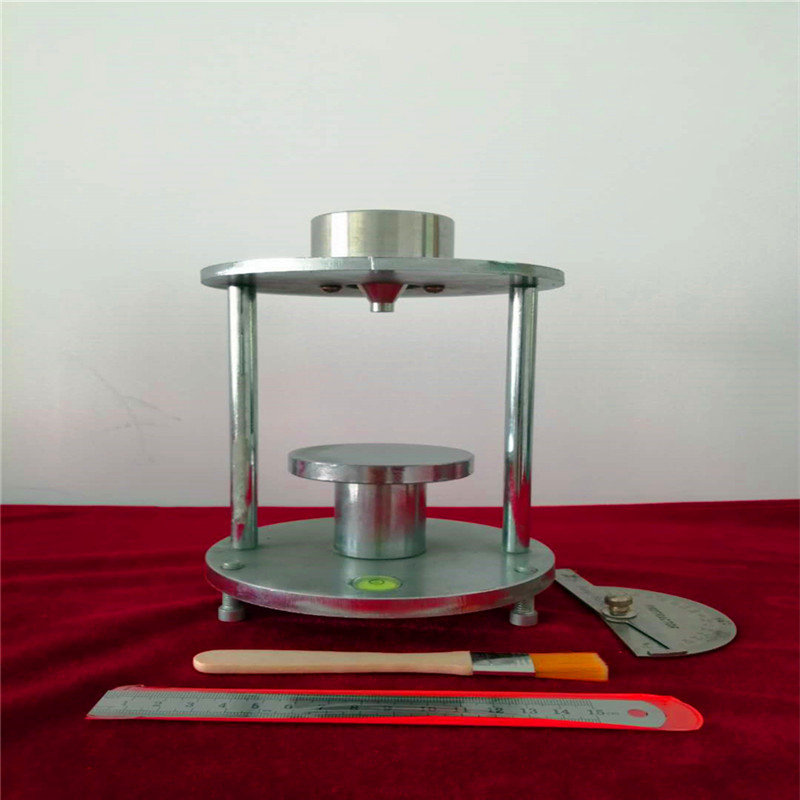

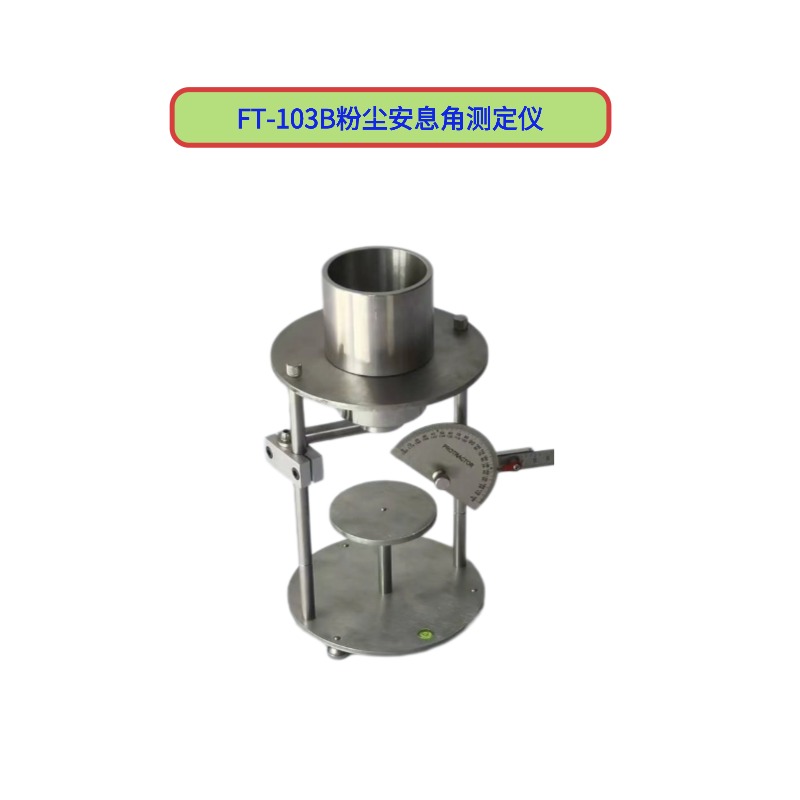

FT-103B粉尘安息角测定仪
发布时间: 2024-04-29 14:54:20 点击: 3540
FT-103B粉尘安息角测定仪
FT-103B powder angle of repose meter
一、 参照标准要求 Standard requirement
GBT 16913-2008粉尘物理试验方法 粉尘安息角测定仪(注入限定底面法)
GBT 16913-2008 powder physical test method of powder angle of repose tester (injection limit underside method)
该产品供生产、经营、使用单位实验室对粉尘的物理性能测定使用。
The product is used for the physical performance of powder in production, operation and use of unit laboratories.
二、原理Principle:
将堆满溢料盘的粉尘从漏斗口注入到水平料盘上;测量粉尘堆积斜面与底部水平面所夹锐角,即粉尘安息角。
Inject enough powder from the funnel into the horizontal disc.Measure the acute angle between the incline and the bottom of the surface of the powder, namely the powder angle of repose
三、参数资料:Technical Parameters
漏斗锥度60°± 0.5°;
Funnel taper 60°± 0.5°
流出口径 5mm,漏斗中心与下部料盘中心应在一条垂线上;
Outlet diameter 5mm, the center of the funnel and the center of the lower tray should be on a vertical line.
流出口底沿与盘面距离80mm 2 mm,量角器7.5cm~10 cm;
The distance between bottom of outlet and disc is 80mm 2 mm, protractor7.5cm~10 cm.
料盘直径 80 mm, 容积100 ml的量筒;
Tray diameter 80 mm, cylinder volume 100 ml.
平直的尘样刮片,棒针;
Flat dust scraping blade, needle bar.
