FT-104C氟化铝/氧化铝流动性测定仪

发布时间: 2020-10-27 15:09:20 点击: 1414

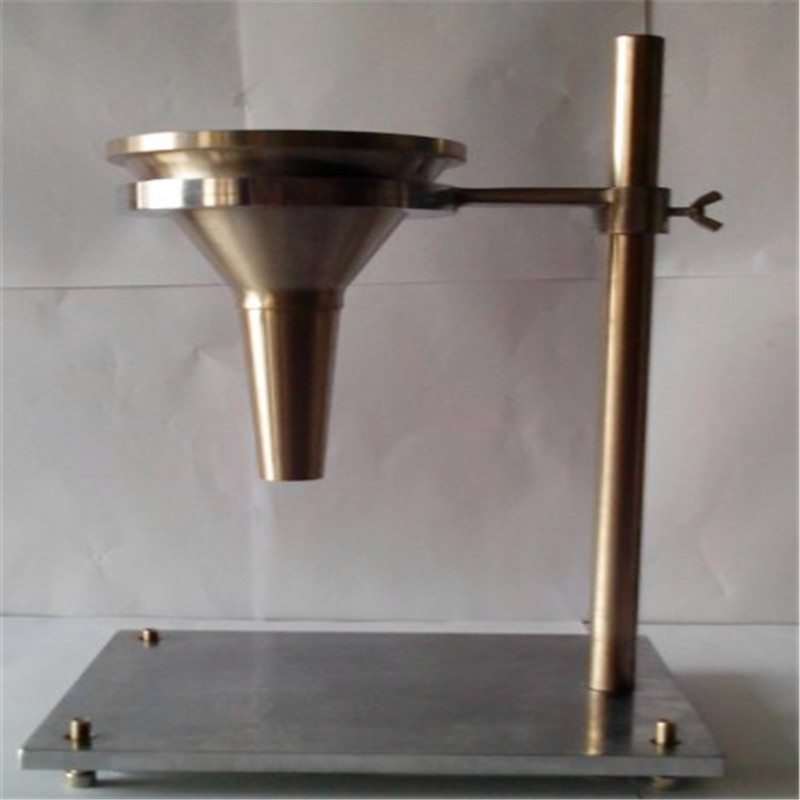

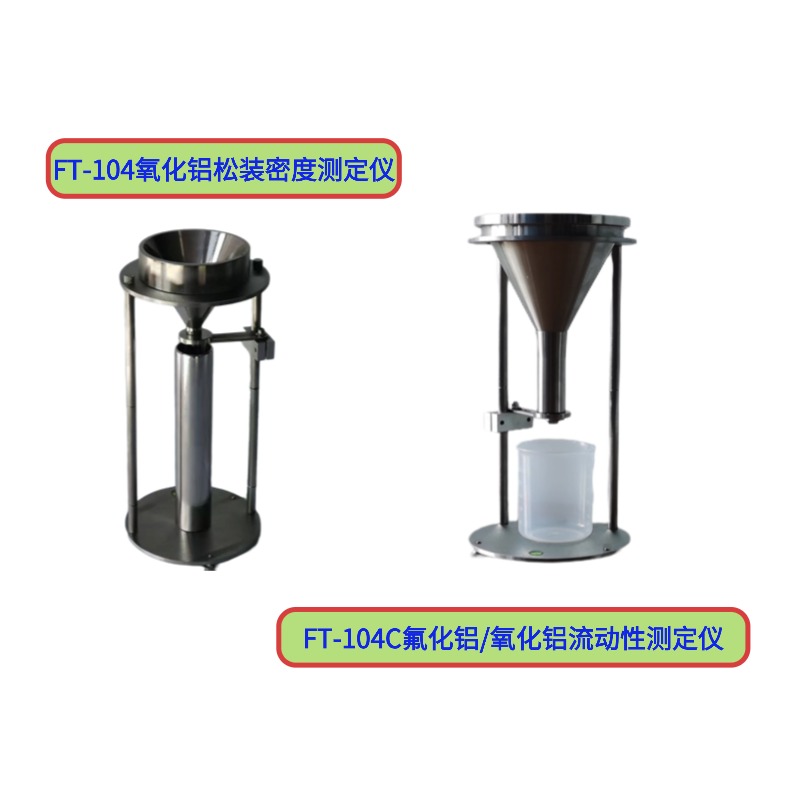

FT-104C氟化铝/氧化铝流动性测定仪

FT-104C氟化铝/氧化铝流动性测定仪

FT-104C Fluorinated aluminium / aluminium oxide flowability tester

一.参数资料: Parameters

漏斗:不锈钢材质,漏斗上口外径138.5mm,内径123mm,出口直径为3.95mm~4.0mm,总高度190.5mm。上口锥度:60°,下料口锥度15°. 依据GB/T66.9.36-2008  用于氧化铝物理性能测定方法设计(流动性能)

Funnel: stainless steel, the outer diameter  of upper funnel is 138.5mm,inner diameter 123mm, outlet diameter3.95mm~4.0mm, total height 190.5mm wear resistant stainless steel.

Upper taper: 60°, lower taper 15°. Based on GB/T66.9.36-2008 for design the determination method of physical properties of alumina (flow performance).
