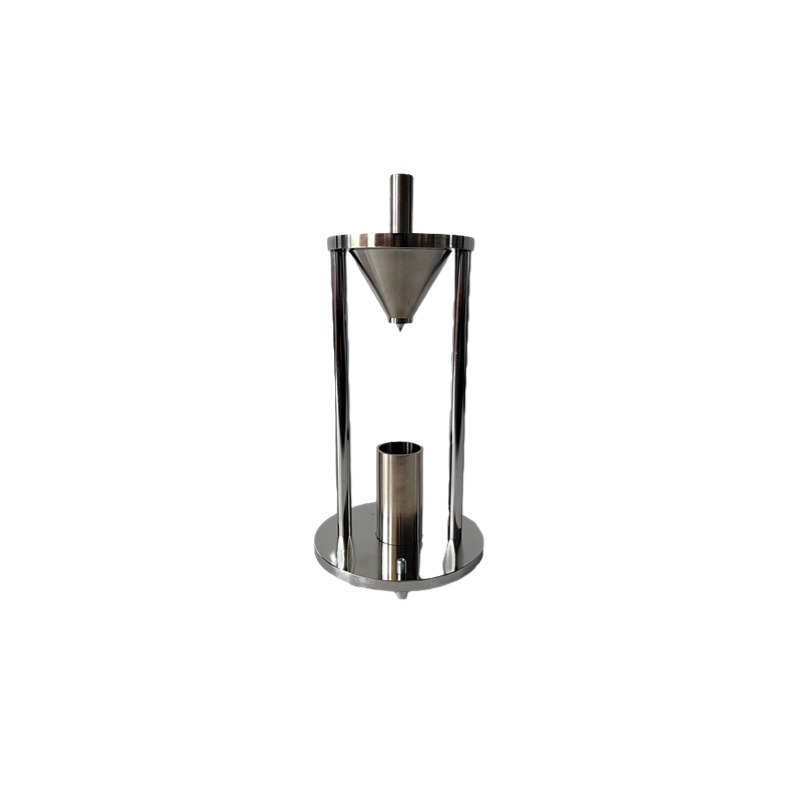

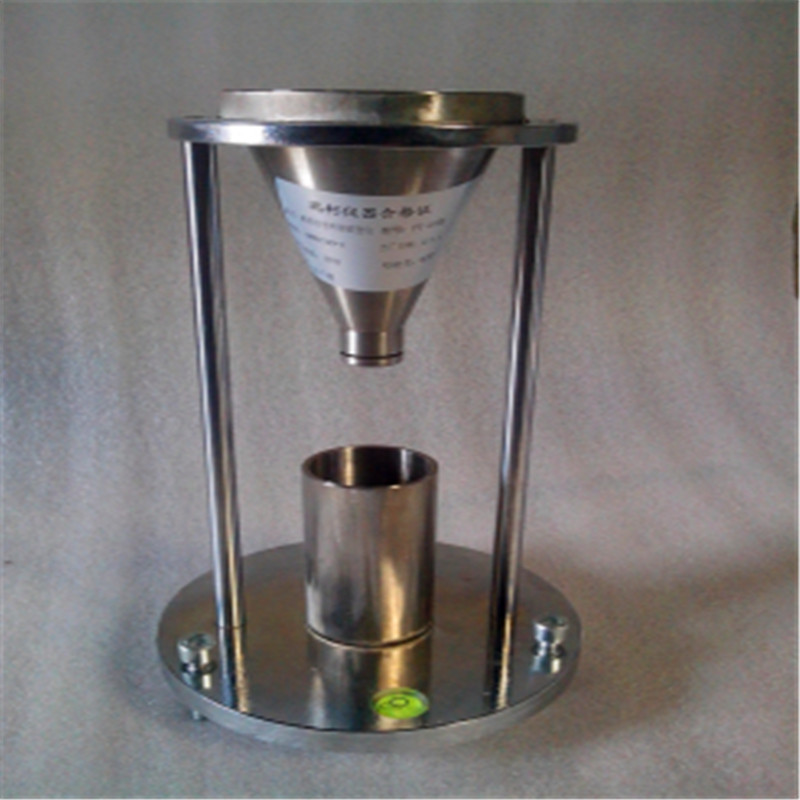

FT-106C普通磨料堆积密度测定仪

发布时间: 2019-08-28 10:46:35 点击: 458
FT-106C普通磨料堆积密度测定仪

FT-106C普通磨料堆积密度测定仪

FT-106CCommon abrasive bulk density tester

一.      参照标准standard

GB-T3603-83普通磨料堆积密度测定方法要求制作,适用于刚玉及碳化硅8~240号粒度磨料堆积密度的测定

According to GB-T3603-83, The bulk density measuring method of ordinary abrasive materials. It is suitable for the  bulk density measurement of the grinding materials of Corundum and silicon carbidee which granularity between 8 and 240

二.参数资料Parameters

漏斗材质:黄铜或不锈钢;锥部高度:82毫米;锥部角度:60~63°;

Funnel material: brass or stainless steel, cone height: 82 mm,

cone angle: 60~63°.

漏斗颈内径:12.7±0.05毫米;漏斗颈长度:12.70.05毫米。

Funnel neck inner diameter:12.7±0.05 mm, funnel neck length: 12.70.05mm.

漏斗锁闭装置是一个直径为35毫米的橡胶球。用两根弹簧固定在漏斗颈的下端。漏斗颈下端至测量筒口的距离为115±2毫米。

The funnel locking device is a rubber ball with a diameter of 35 mm

5.测量筒材质:黄铜;内径:39±0.1毫米; 内深度:83.7±0.1毫米;容积:约100厘米3. Measuring cylinder material: brass, inner diameter: 39±0.1mm, internal depth: 83.7±0.1mm,volume:100 cm3.

6.刮料板材质:黄铜Scraper material: brass

7.选购天平:称重500g,0.1克

8.配置:架台:1套 ;漏 斗: 1只;量杯; 黄铜材质(Φ31mm、25ml)1只;;溢料盘不锈钢1只;毛  刷1只; 说明书;保修卡;合格证。

Equipment: Stand: 1 sets, funnel: 1pcs, measuring cup: brass (Φ31mm,25ml)1pcs,

overflow tray stainless steel 1pcs,  brush 1pcs,manual,warranty card, certificate.
