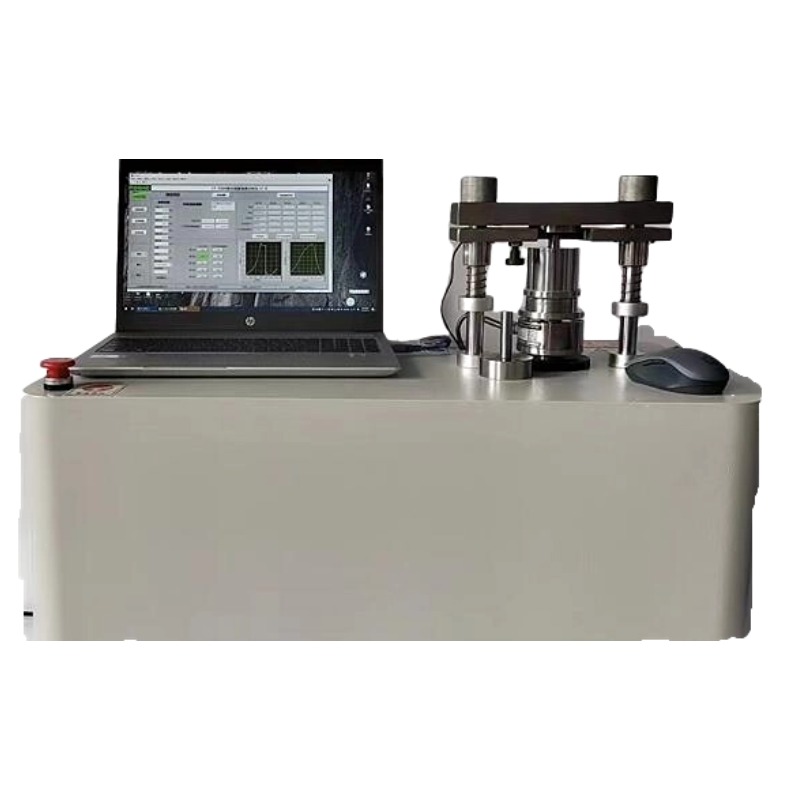

FT-3900 powder yield strength analyzer


High-precision automated measurement and control module, PC software system for data analysis and report analysis, only a small number of samples can be set to change the stress.

The uniaxial test method is used to evaluate and evaluate the powder flow function by plotting a fixed or multiple consolidation stress to the powder, as well as the unconfined yield strength stress (also called open yield strength) required to destroy the consolidation stress Density, flow factor, time consolidation function and other data to analyze the flow of the powder characterization.Through the measurement we can improve and prevent hopper, storage, transportation, transmission process, tabletting process, mixing, powder agglomeration, Non-flow phenomenon, laboratory quality control, help quality suppliers to choose and improve the formula and reduce costs.

In general, the consolidation stress of the viscous powder will be greater than the unconfined yield strength stress of the powder under this stress, which indicates that the fluidity of the powder is lower; otherwise, the free-flowing powder will be small.


1.应力范围Stress: 0-1000kPa

2.样品量Sample volume of at least: 10ml

3.数据自动分析和处理结果. Data automatic analysis and processing results.

4.自动高度数据采集. Automatic height data acquisition.


6.工作环境:实验室条件Working environment: laboratory conditions

7.净重量约Net weight about:35kg

8.压力校准砝码Pressure calibration weight:2个

9.其他规格样品槽可以定制Other specifications Trace sample tank can be customized.
