FT-101斯柯特容量计松装密度测试仪

发布时间: 2022-12-29 15:41:02 点击: 7340

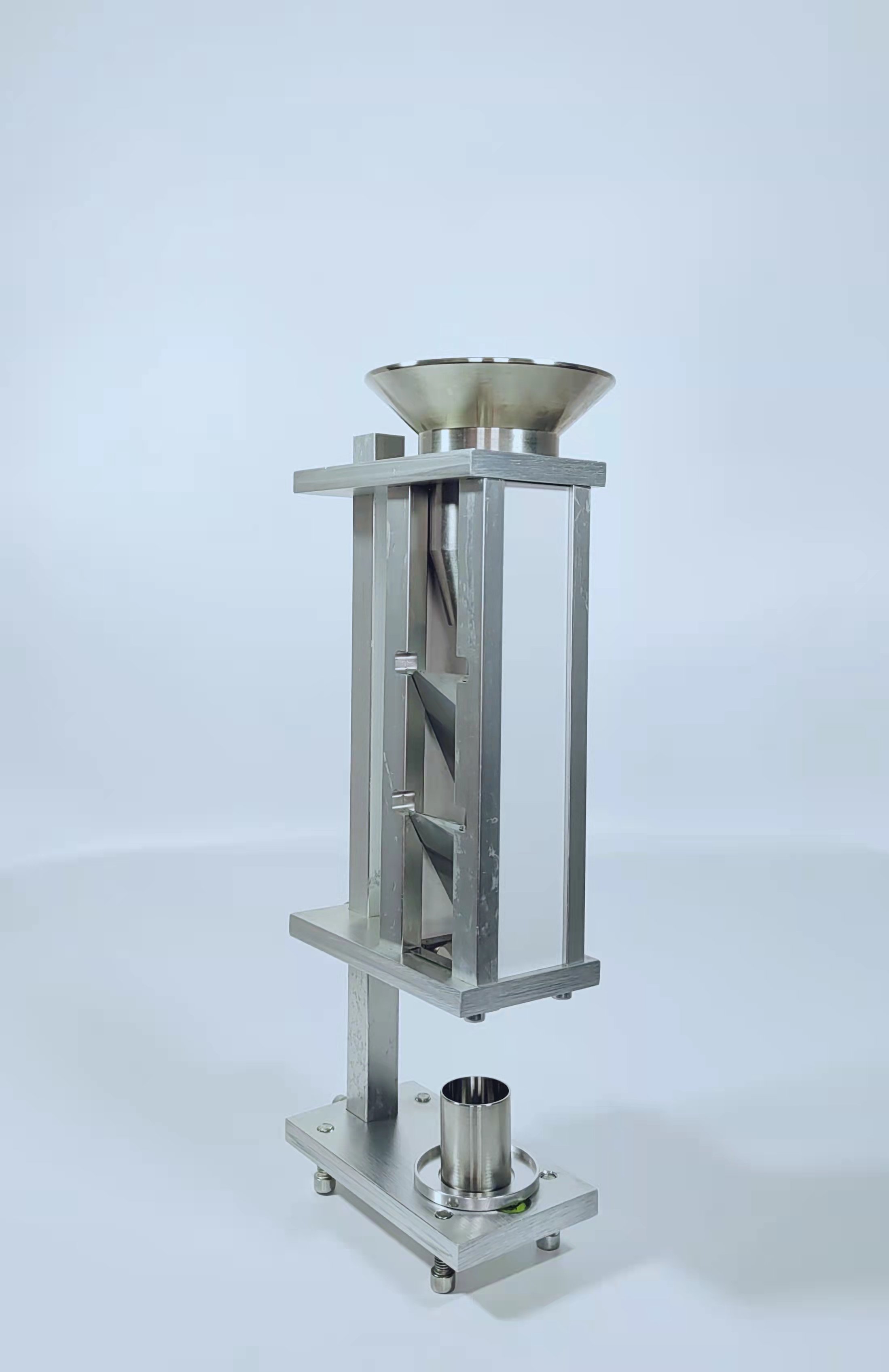

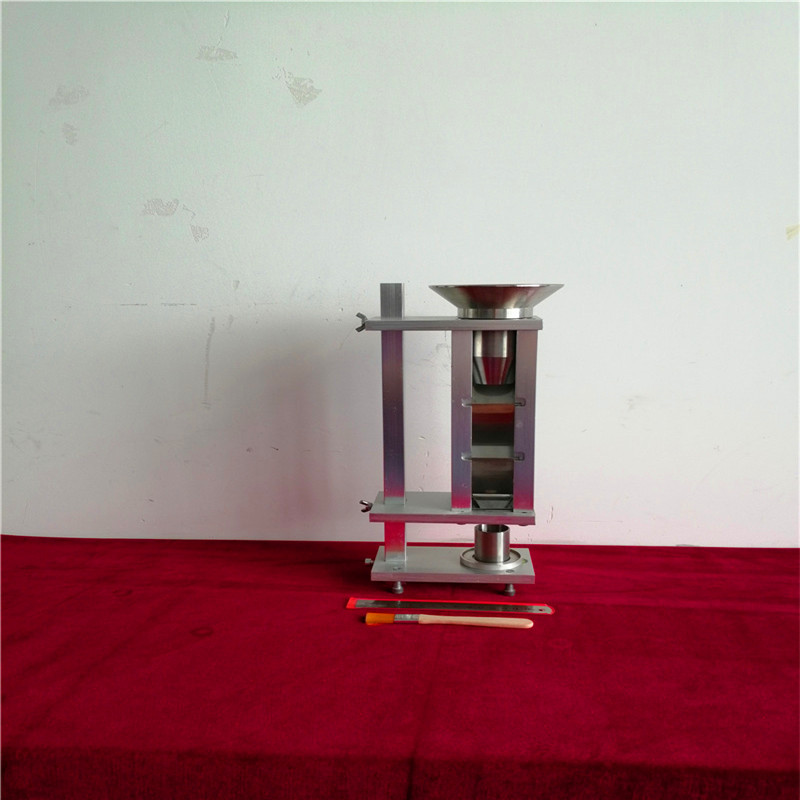

FT-101斯柯特容量计松装密度测试仪

FT-101斯柯特容量计松装密度测试仪
FT-101 Scott volumeter bulk density tester
一、 参照标准Meet the standards:
ASTM标准b329 – 90;GB/T 1479.2-2011   GB5060;USP26NF21 < 616 > IS0 3923-2:1981中所提供的基本结构和参数要求,其各项指标均符合标准的规定。
ASTM standard b329 – 90, GB/T 1479.2-2011   GB5060, USP26NF21 < 616 > IS0 3923-2:1981 basic structure and parameter requirements, all the indicators are in line with the provisions of the standard.
二、测试方法Test method:斯考特法Scott method


 三、技术规格:Technical speciications:
上部漏斗组件:材料:304不锈钢;上端口径Φ112mm、下端口径Φ30mm、总长度:30+850mm。筛网:1.18mm不锈钢筛网(10网筛网USP26NF21 < 616 >)。
1.The upper funnel assembly: material:304 SS, top diameterΦ112mm,bottom diameterΦ30mm, total length:30+850mm. sieve:1.18mm SS sieve. (10 mesh sieve USP26NF21 < 616 >)。
布料箱:方形,内置四块1毫米厚不锈钢档板。
Cloth box: square, with four pieces of 1 mm thick SS plate.
方形漏斗:60°方锥体,下端口径为12.5mm×12.5mm。
Square funnel: 60°square pyramid,bottom diameter 12.5mm×12.5mm.
圆柱杯:材料:304不锈钢;容积为25±0.05 ml。
Cylindrical cup: material:304 SS, volume 25±0.05 ml.
尺寸:100 mm×160 mm×358 mm。
Dimensions:100 mm×160 mm×358 mm
