FT-105A活性剂表观密度测定装置

发布时间: 2020-10-27 15:10:26 点击: 3920

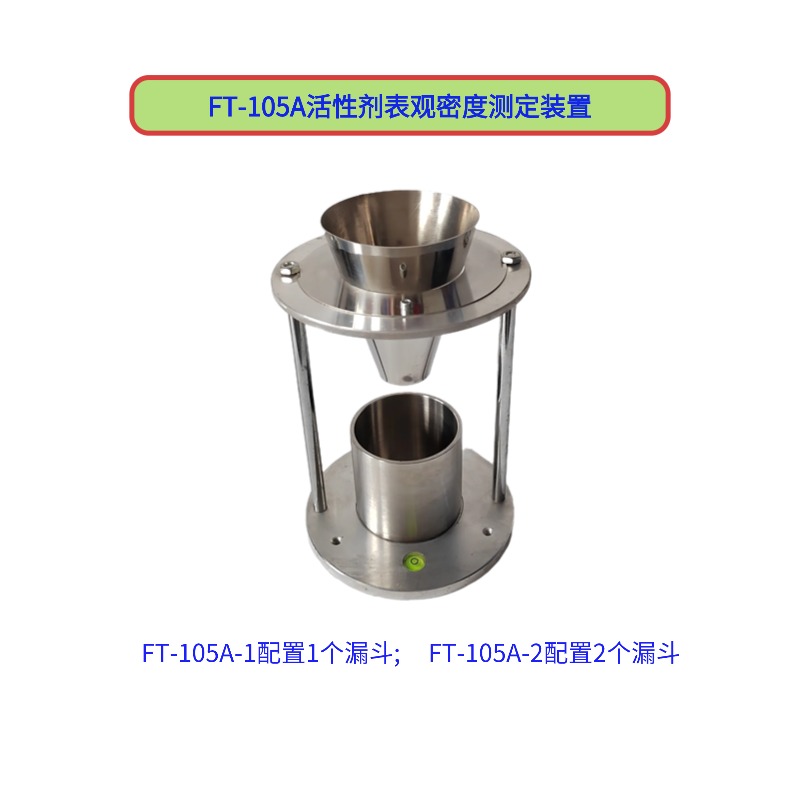

FT-105A活性剂表观密度测定装置

FT-105A活性剂表观密度测定装置

FT-105ASurface density measuring device of active agent

一.适用范围Scope of application:

用于自由流动的粉状物或颗粒状表面活性剂物料,也可以用于有团块状的表面活性剂,但这些团块应是被容易松散且颗粒又不被破碎的物料。

used for the free flow of powder or granular surfactant materials, can also be used to surfactant with block mass , but the block mass should be easy to loose and granular materials without being broken.

二.参照标准Standard:ISO1064:1974;GB/T7379-2003; GB/T6373-2007表面活性剂 表观密度的测定。

ISO1064:1974;GB/T7379-2003;GB/t6373-2007 test for surface density of surfactant.

三.参数资料: Parameters

漏斗:能自由流动之粉体采用下孔径为40mm漏斗(选购一);

Funnel: Free flow of powder use the lower diameter of 40mm funnel (optional 1)

当有团块状粉体时,应采用漏斗下孔径为:60mm漏斗(选购二)。

When there is a agglomerate powder, should be used the lower diameter of 60mm funnel (optional 2).

接收器:量筒容积:500mL

Receiver: the cylinder volume: 500mL

支架:用于固定漏斗; 底板有量筒定位销才

Bracket: use for fix funnel, bottom plate has a cylinder positioning pin.

截止板:110*70mm; Cut-off plate: 110*70mm

直尺:150mm  ;ruler: 150mm.

材质:不锈钢材质  Material: stainless steel

外形尺寸250*250*320mmDimensions 250*250*320mm
