FT-105C ASTM D1895塑料表观密度仪

发布时间: 2019-08-28 11:53:40 点击: 312
FT-105C ASTM D1895塑料表观密度仪

FT-105CASTM D1895塑料表观密度仪

FT-105CASTM D1895Plastic apparent density meter

一.参照标准standard:

ASTM D1895 03 Standard Test Methods for Apparent Density, Bulk Factor, and Pourability of PlasticMaterials 1; Apparatus for Apparent Density Test, Method A和B制作。

According to ASTM d1803 Standard Test Methods for Apparent Density, Bulk Factor, and Pourability of Plastic Materials 1;Apparatus for Apparent Density Test, Method A and B.

二.参数资料Technical Parameters

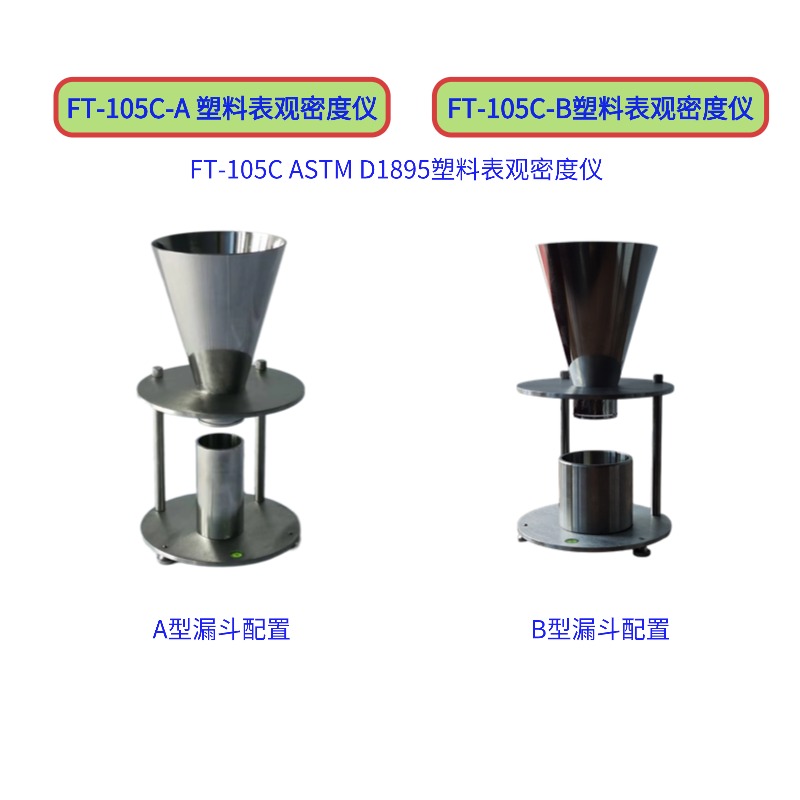

选购一:A型漏斗要求: Optional 1: A type funnel requirements

参数要求:仪器尺寸符合ASTM D-1895标准中A方法,漏斗上出口直径9.3cm、下出口直径0.95±0.08cm,漏斗高度11.4cm,漏斗材质要为不锈钢316;量杯高度7.98cm、直径3.99cm;量杯口与漏斗下出口的高度为3.8cm;配置附件: 秒表1只;毛刷1只; 钢尺15cm 1把 说明书;保修卡;合格证。

Parameter requirements: instrument size conforms to the D-1895 standard in ASTM A method, the upper opening diameter of the funnel is 9.3cm, the lower outlet diameter of the funnel is 0.95±0.08cm, funnel height is 3.99cm, the height between the cup mouth and the lower outlet of the funnel is 3.8cm. Accessories: stopwatch 1, brush 1, steel rule 15cm 1, manual, warranty card, certificate.

选购二:B型漏斗要求Optional 2: B type funnel requirements

1、量杯的高度24±0.1cm;The height of cup is 24±0.1cm.

2、漏斗与量杯的高度3.8cm;The height between funnel and cup is 3.8cm.

3、漏斗下出口2.54cm±0.16cm;The lower outlet of the funnel is2.54cm±0.16cm.

4、漏斗上开口12.7±1.0cm;The upper opening diameter of the funnel is 12.7±1.0cm.

5、量杯的容积400ml±2.0ml;Cup volume is 400ml±2.0ml.

6、角度:24度;Angle: 24 degrees.

7、材质:不锈钢材质;Material: stainless steel;

8、配置附件: 秒表1只;毛刷1只; 钢尺15cm 1把 说明书;保修卡;合格证。

Accessories: stopwatch 1, brush 1, steel rule 15cm 1, manual, warranty card, certificate.
