FT-105E 高吸收性树脂密度测定仪

发布时间: 2024-04-29 15:13:06 点击: 2611

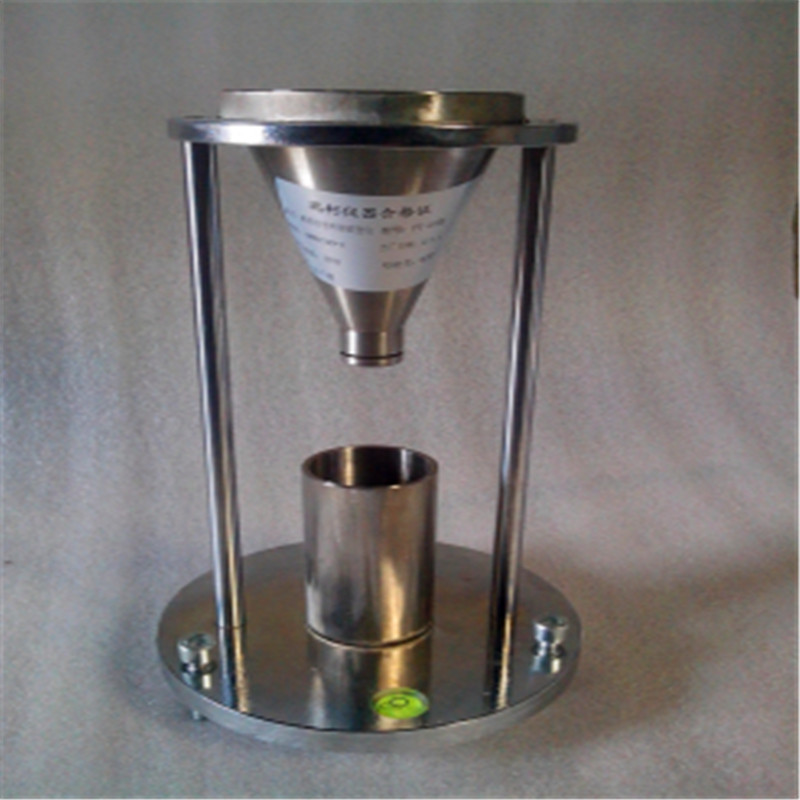

FT-105E 高吸收性树脂密度测定仪

FT-105E 高吸收性树脂密度测定仪

FT-105E  High absorption resin density tester

适用于聚丙烯盐酸类高吸收性树脂及粉尘堆积密度的测定,参照GB/T 22875-2008的规定。

This device is suitable for the determination of high absorptive resin and powder packing density in polypropylene hydrochloric acid, which conforms to the national standard GB/T 22875-2008.The test method is similar to the international related standards requirement

参数资料

不锈钢漏斗容量大于120ml,且带有孔氏阻尼或挡板,底口内径10±0.01mm, 角度40°;

The volume of SS funnel is greater than 120ml, and with hole damping or baffle, the inner diameter of bottom outlet is 10±0.01mm,angle 40°.

漏斗底部距离密度杯顶部40mm±1mm。

The distance between the bottom of funnel and the top of cup is40mm±1mm.

3.密度杯:不锈钢材质,容积100±0.5cm3

Density cup: stainless steel, volume 100±0.5cm3.

4.漏斗支撑架和底板有定位The funnel bracket and the bottom plate are positioned.

5.配置:水平仪、钢尺、毛刷、说明书、保修卡、合格证.

Equipment: level, steel ruler, brush, manual, warranty card, certificate.
